Brand Name : JCX
Model Number : Step tile machine
Certification : CE ISO
Place of Origin : China
MOQ : 1 set
Price : USD11000-USD13500 PER SET
Payment Terms : L/C, T/T, Western Union
Supply Ability : 50 SETS PER MONTH
Delivery Time : 20-30 working days
Packaging Details : Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Shaft material : 45# Steel Outer Diameter: 80mm
Cutting blade material : Cr12 Frequency Quenching
Number Of Rollers : 19 stations
Raw Material Thickness : 0.3-0.8mm
Usage : Roof
Machine type : Roll forming
Control box language : As your requirement
Export port : Tianjin
PLC brand : Delta
Machine frame : 350H Steel
High Speed Color Steel Glazed Tile Roll Forming Machine For Construction Material Roof Sheets
1. Description of glazed tile roll forming machine:
Glazed tile roll forming machine has many types which can used together with corrugated sheet and IBR sheet, or glazed tile sheet.The roofing sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has own advantage- beautiful appearance, durable using and so on.
Metal glazed tile roll forming machine adopts advanced automatic control software, roof panel roll forming machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of glazed tilel roll forming machine:
Machine Specifications | |
Weight | About 6tons |
Size | About 1.5m*1.5m*1.3m |
Machine Color | Main color: blue or as your requirement |
Warning color: your requirement | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.3-0.8mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 18 |
Diameter of forming rollers shafts | 80mm |
Roll Forming Speed | 3-5m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 5kw |
Hydraulic unit motor power: 4kw | |
Electric voltage | According to customer’s requirement |
3. Main components of roof panel roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
6. Application
This machine is widely used in the production of the roof wall steel construction and so on.
7. Product photo
8. FAQ
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q. Why are your prices higher than others?
A: Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q. What is your payment terms?
A:1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
2 : We accept 100% L/C at sight
3: We accept Western Union payments.
4 : Other payment terms you want to pay, please let me know and i will check and reply you.
![]() |

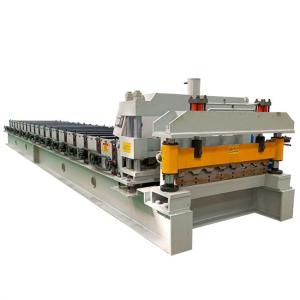

4kw Glazed Tile Roll Forming Machine For Construction Material Roof Sheets Images |
